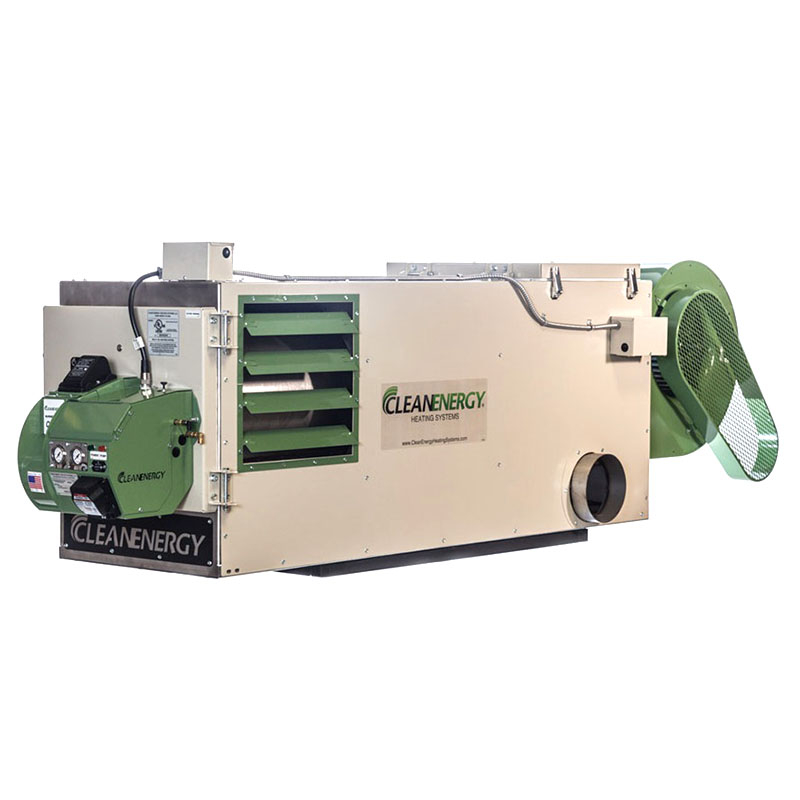

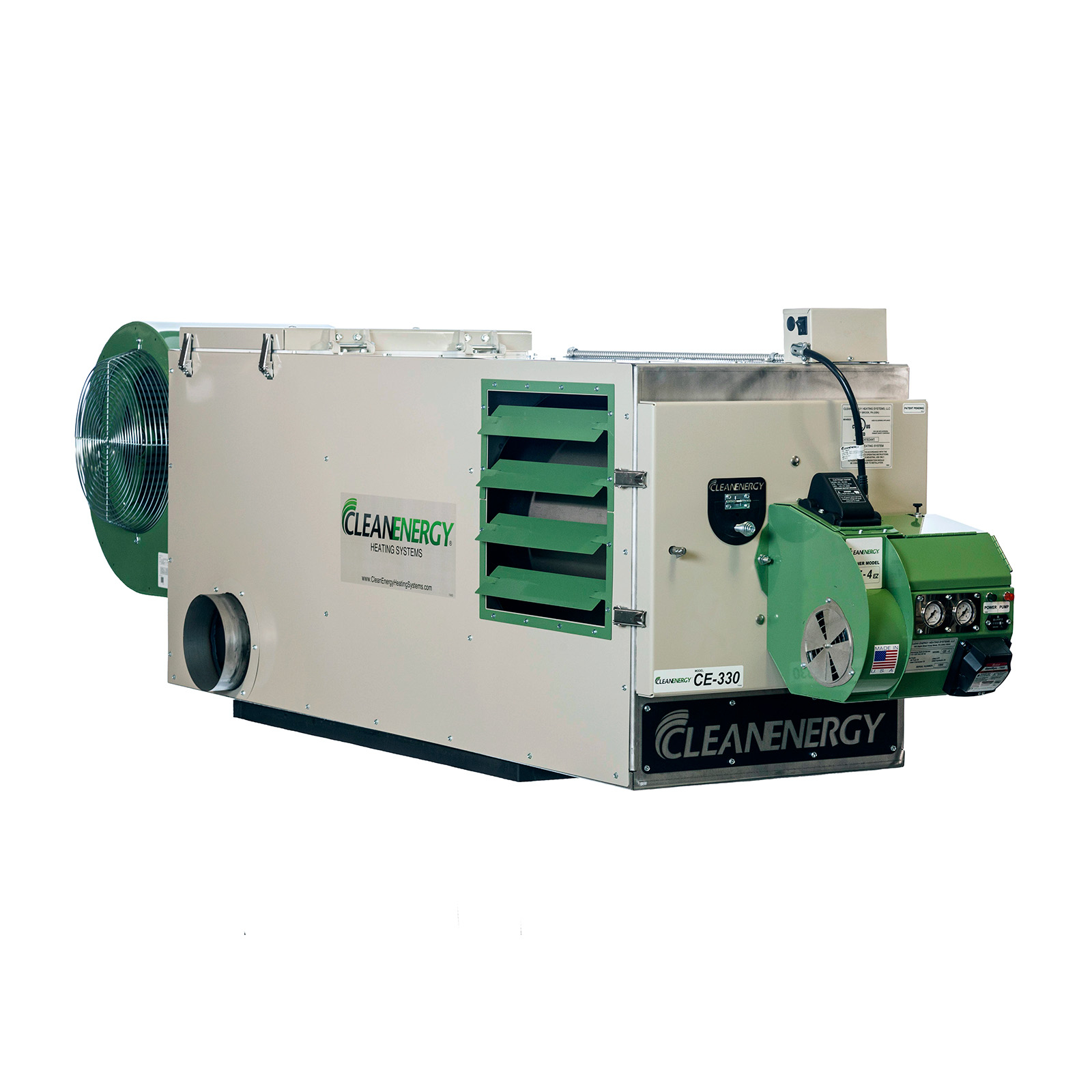

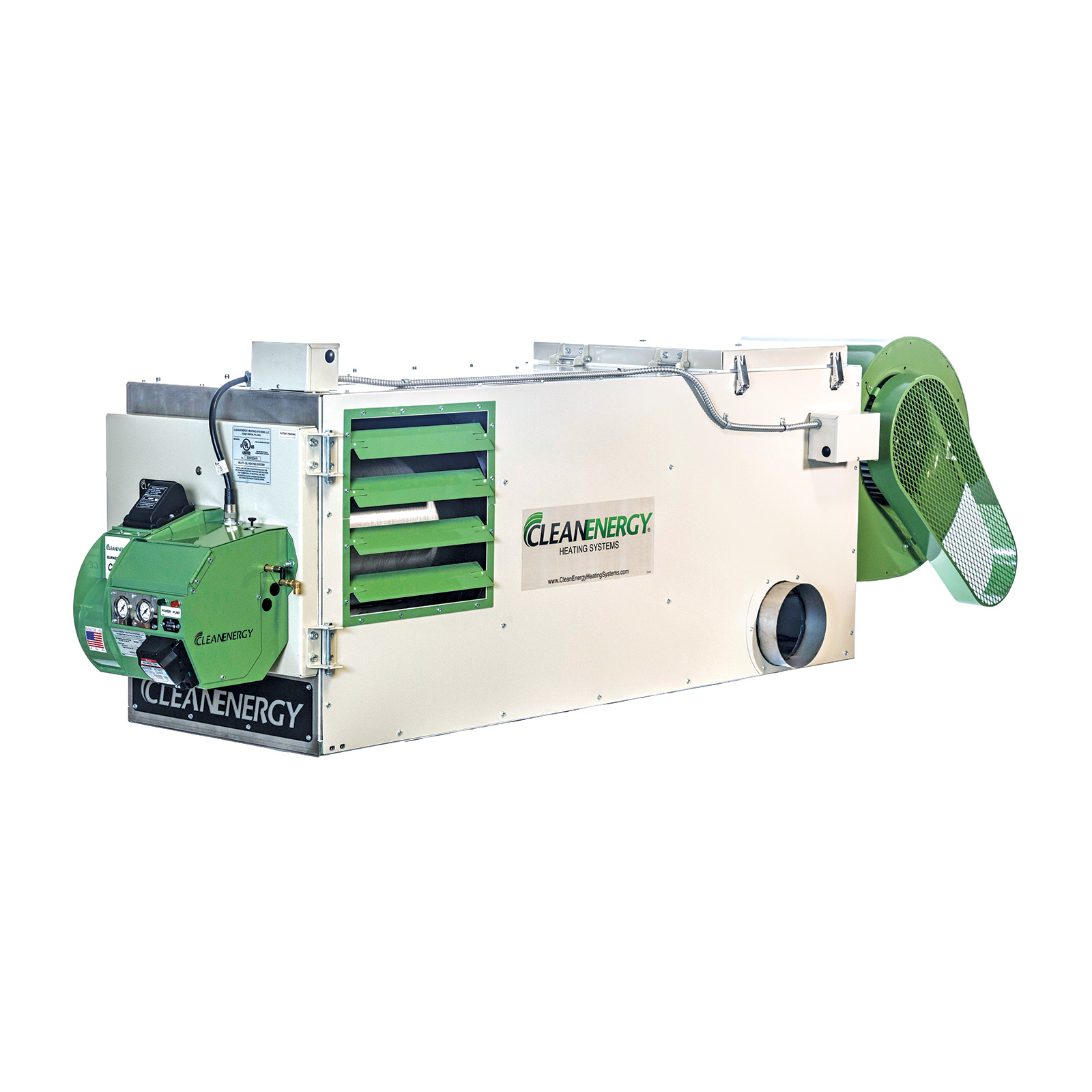

CE-330 - Clean Energy Waste Oil Heater

The Clean Energy Heating Systems CE-330 Waste Oil Heater (also known as a waste oil furnace) is our largest heater, and is perfect for quickly and effectively heating a garage with 7 or more bays. With up to 325,000 BTU’s of input coupled to our innovative new design, the CE-330 is truly a hot performer.

Thanks to the ability to turn used motor oil, transmission fluid and other petroleum products into clean, safe heat, the CE-330 waste oil heater generates solid ROI in addition to helping the environment.

Also, all Clean Energy heaters are engineered from the ground up to burn waste oils and comply with EPA regulations. They easily install and provide for longer intervals between cleanings, and their low-profile design and flexible configuration are ideal for areas with limited ceiling height and other creative installation requirements.

Best of all, every Clean Energy waste oil heater is built with our unique, patent-pending heat exchanger and flue tubes. This design ensures long-lasting durability and highly efficient operation for years to come.

Features

The Industry’s Best Warranty
409 Stainless Steel Heat Exchanger and 409 Stainless Steel Flue Tubes for Durability & Corrosion Resistance increases the life of the furnace.
Flue tubes are swedged, not welded, to resist cracking over years of heavy use.
Vertical heat exchanger flue tubes for Longer Service Intervals between cleaning (1,000+ hours)

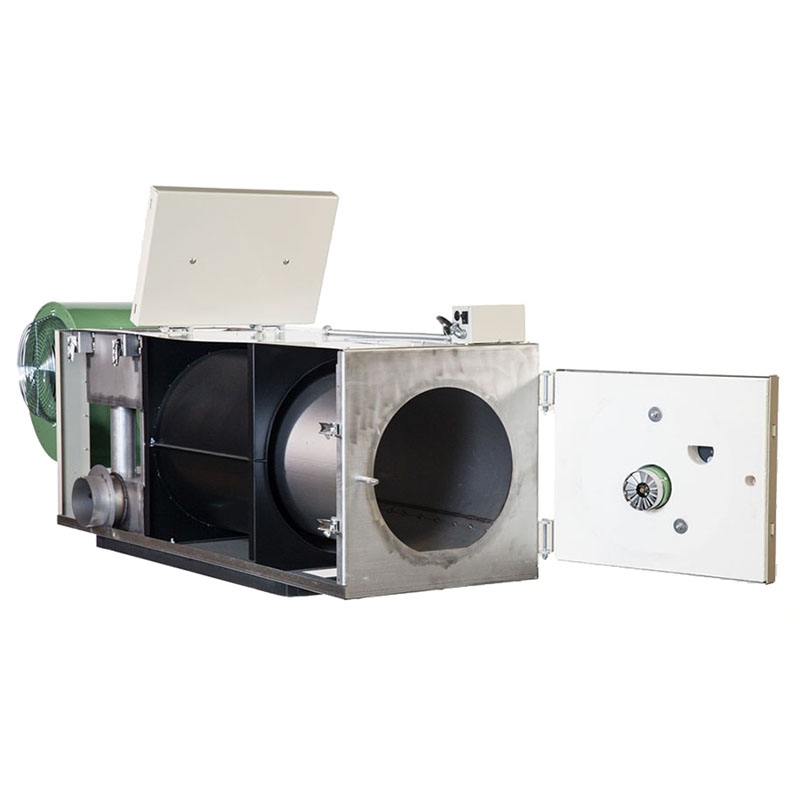

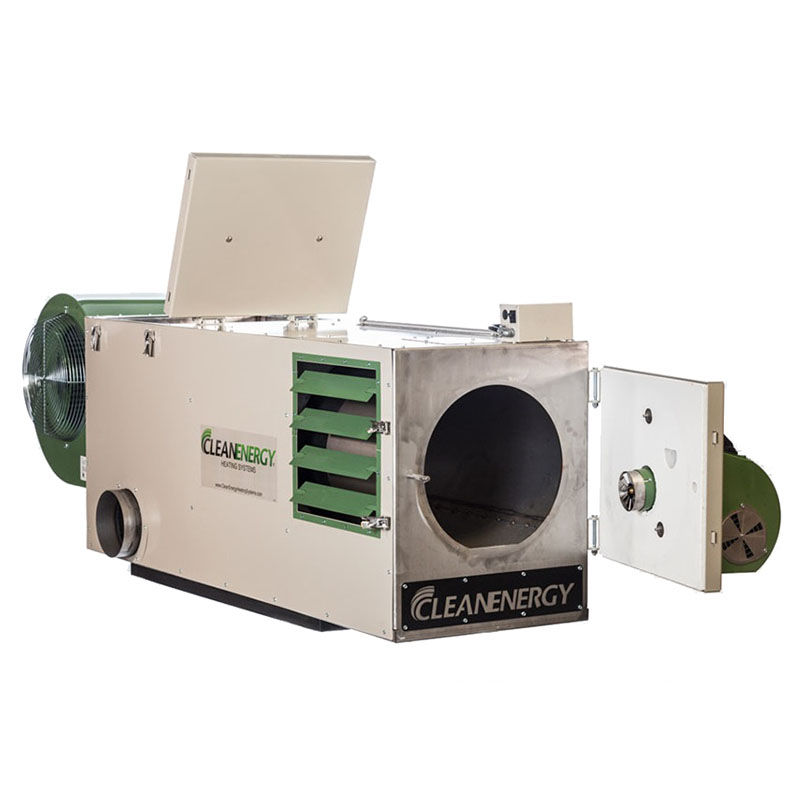

Over center latches on doors for Easy, Quick Cleaning
Digital, programmable burner control for reliable operation in all conditions
High velocity air swept stainless steel heat exchanger Produces More Heat
Thermostatically-controlled pre-heater easily pass UL “cold oil start” tests
Burns a variety of fuels including most synthetic oil, and just about any mixture of oil products
Dependable, Easy to Install Metering Pump. Pre-assembled and vacuum-tested – automatically adjusts for different fuels
Quick, Easy Access Oil Line Connection Block – allows easy access without disconnecting oil line.
Modern Burner manufactured by CleanEnergy preheats oil, regulates and optimizes combustion

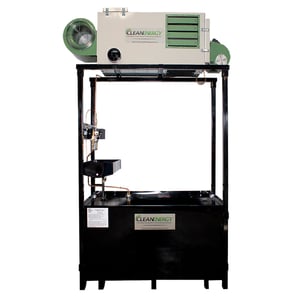

Tank, Wall or ceiling mounting options.

Specifications

325,000 BTU/hour Input
3,700/85°F, air flow output CFM/heat rise
2.3 GPH fuel consumption
Acceptable fuels: used crankcase oil, transmission fluids, hydraulic oil, #2 heating oil (diesel fuel) and most synthetic oils
230vac, 60hz, single phase, 30A breaker
Vertical Stainless Steel flue tubes
8″ chimney outlets on left or right side
Tank, wall or ceiling mountable
Digital wall thermostat
Burner with Interrupted Duty Ignition

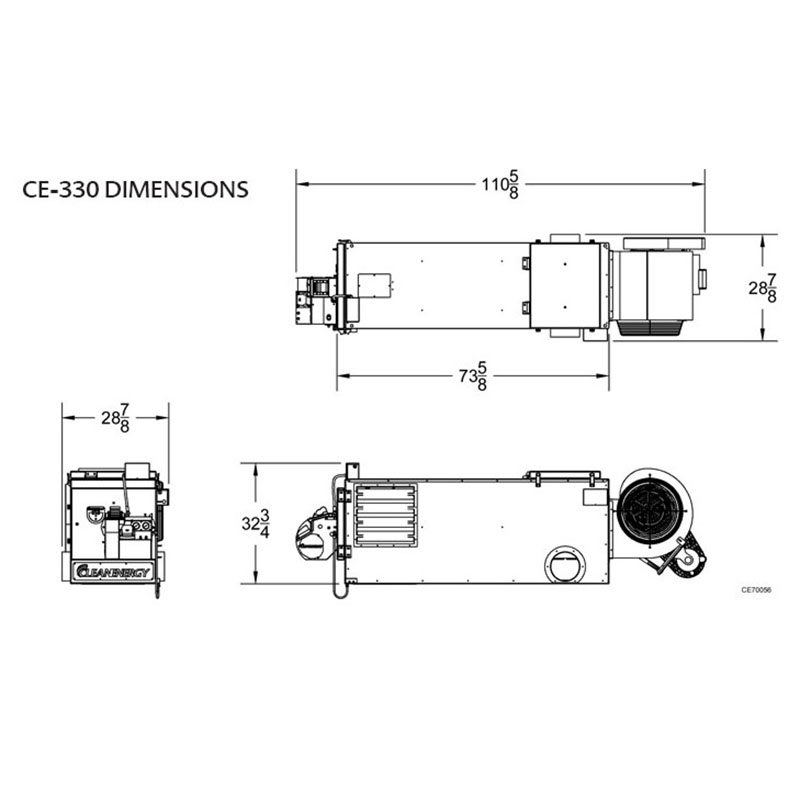

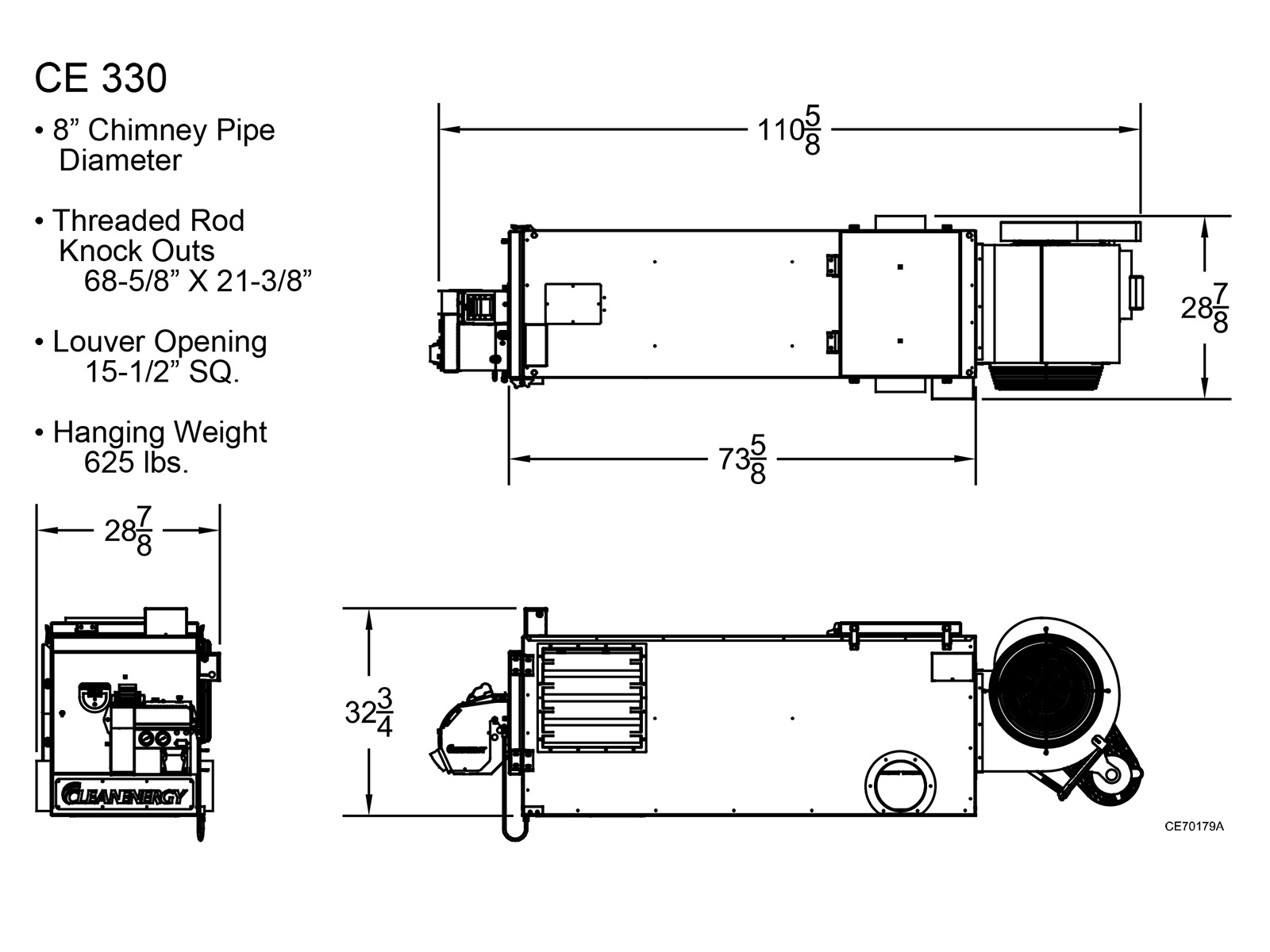

111″l x 32″h x 26″w (w/burner and blower)
UL Listed – cUL Listed
12 Year Warranty
Made in the USA
