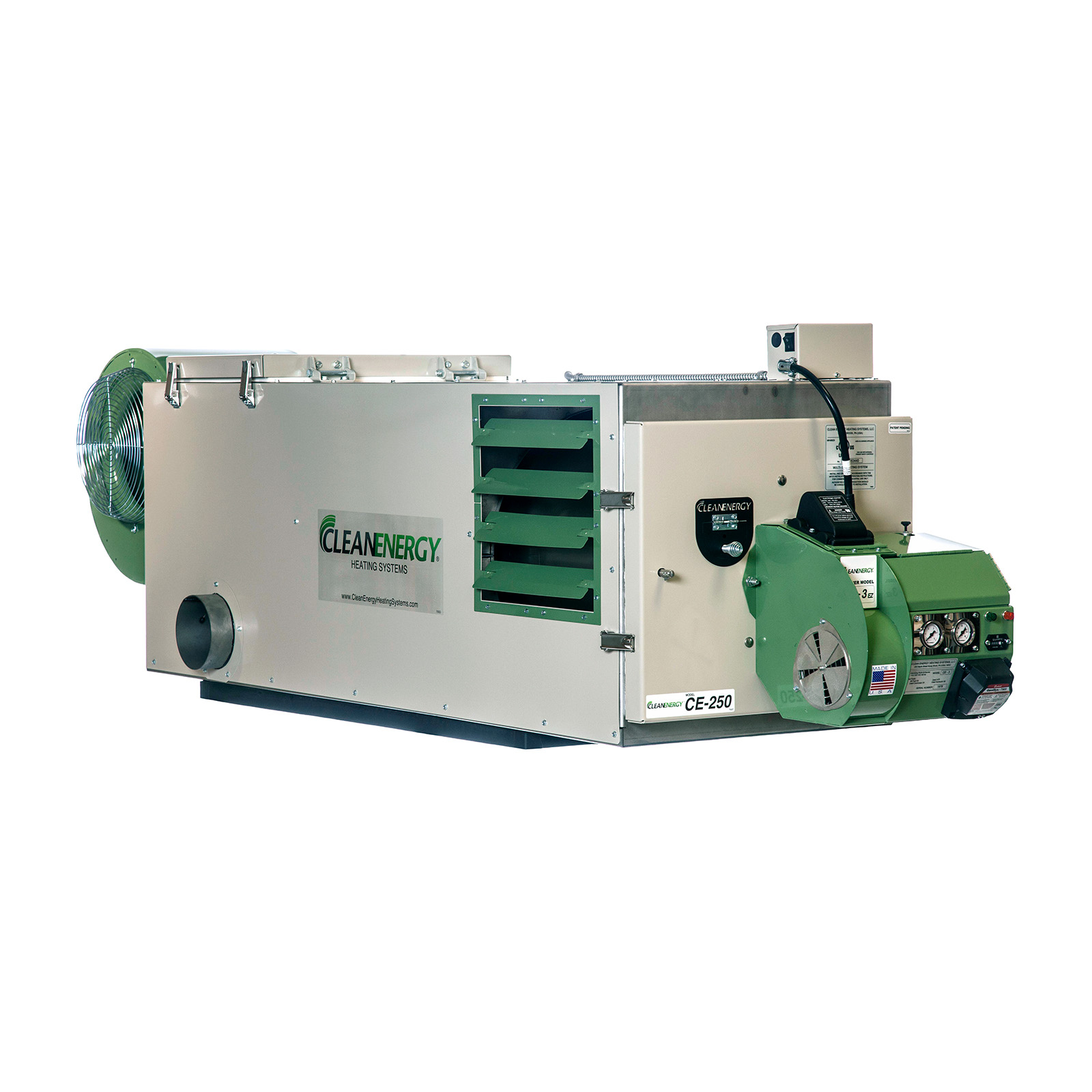

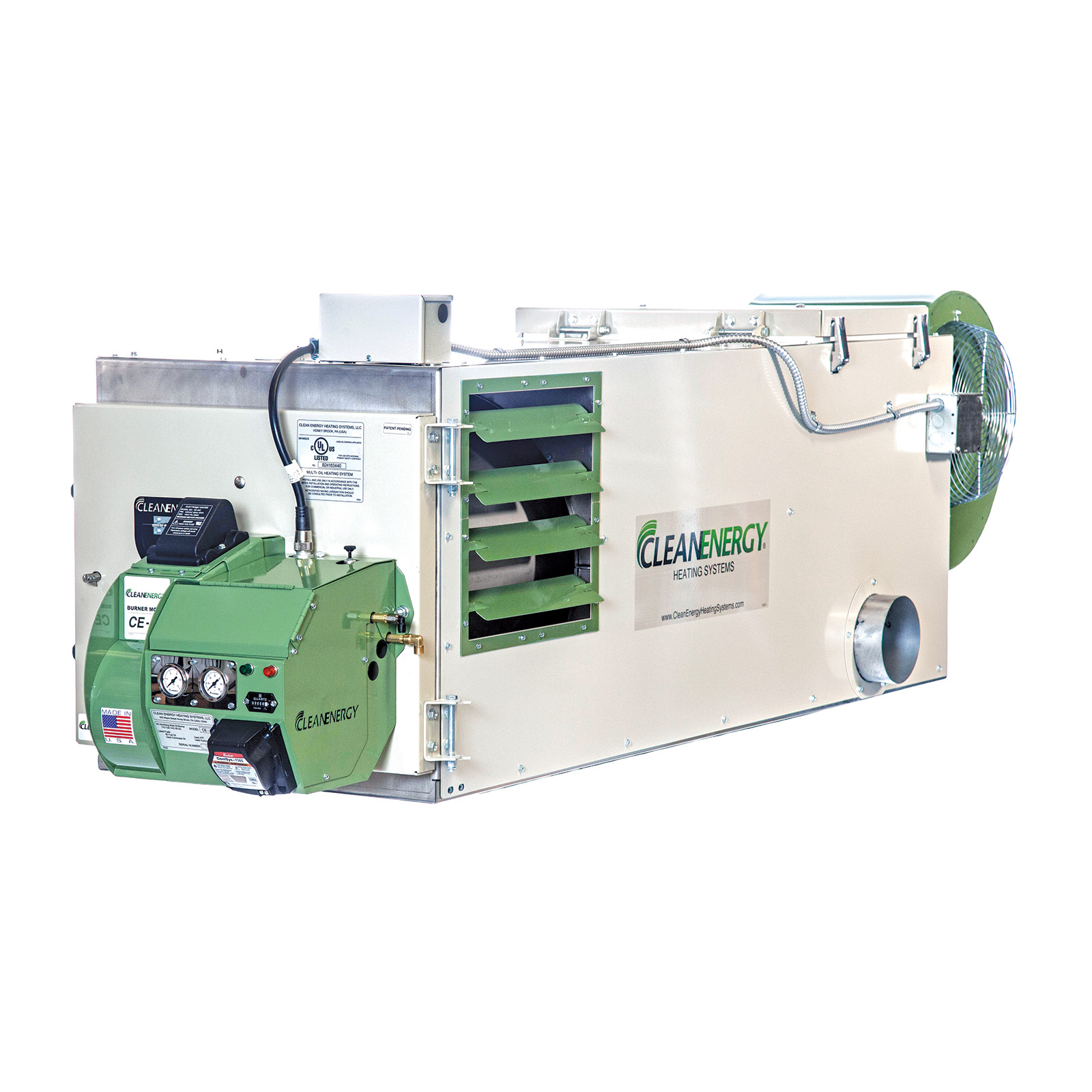

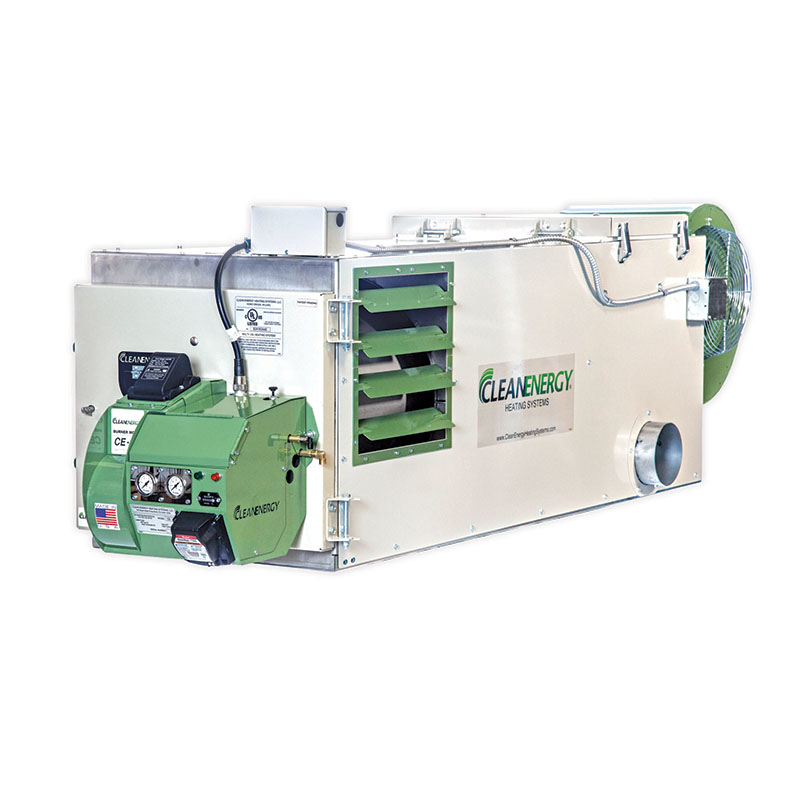

CE-250 - Clean Energy Waste Oil Heater

Our CE-250 Waste Oil Furnace is a strong, eco-friendly furnace that’s been designed to efficiently heat a 5 to 8 bay garage. With up to 245,000 BTU’s of input and all of Clean Energy’s patent-pending design advances, it’s a powerful way to heat warehouses, garages and other large spaces that’s as eco-friendly as it is economical.

And thanks to its ability to run on used motor oil, transmission fluid and other petroleum products, the CE-250 makes economic and environmental sense for your business.

In addition, all of our waste oil furnaces are engineered from the ground up to burn used oils and comply with all EPA regulations. They’re designed for easy installation, longer cleaning intervals and flexible installation in areas with limited ceiling heights and other access requirements.

Best of all, every Clean Energy furnace is built with our patent-pending heat exchanger and flue tubes. This innovation ensures long-lasting durability and highly efficient operation for many years to come.

Features

The Industry’s Best Warranty
409 Stainless Steel Heat Exchanger and 409 Stainless Steel Flue Tubes for Durability & Corrosion Resistance increases the life of the furnace.
Flue tubes are swedged, not welded, to resist cracking over years of heavy use.
Vertical heat exchanger flue tubes for Longer Service Intervals between cleaning (1,000+ hours)

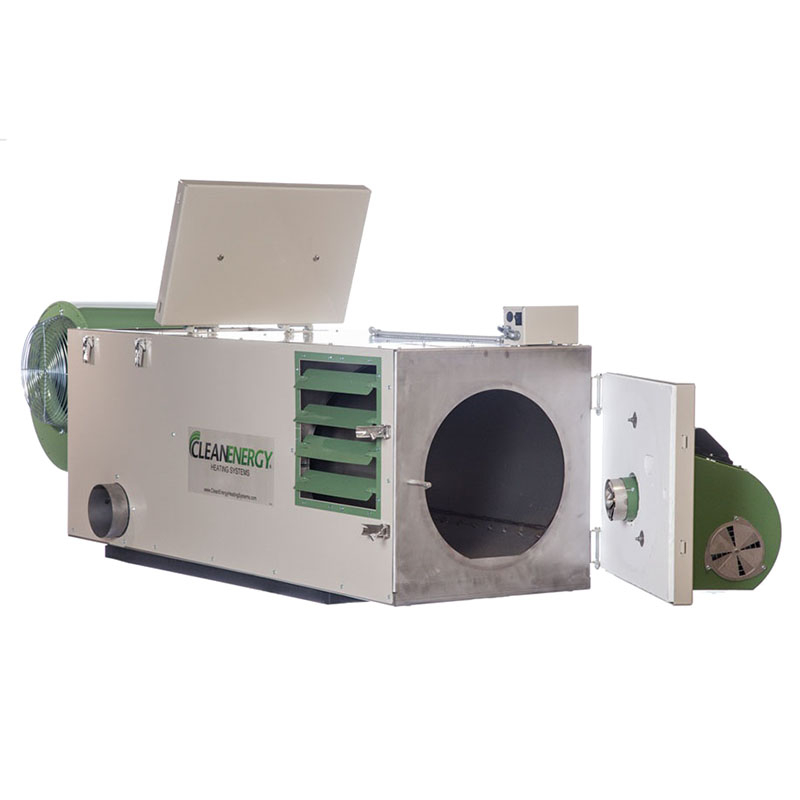

Over center latches on doors for Easy, Quick Cleaning
Digital, programmable burner control for reliable operation in all conditions

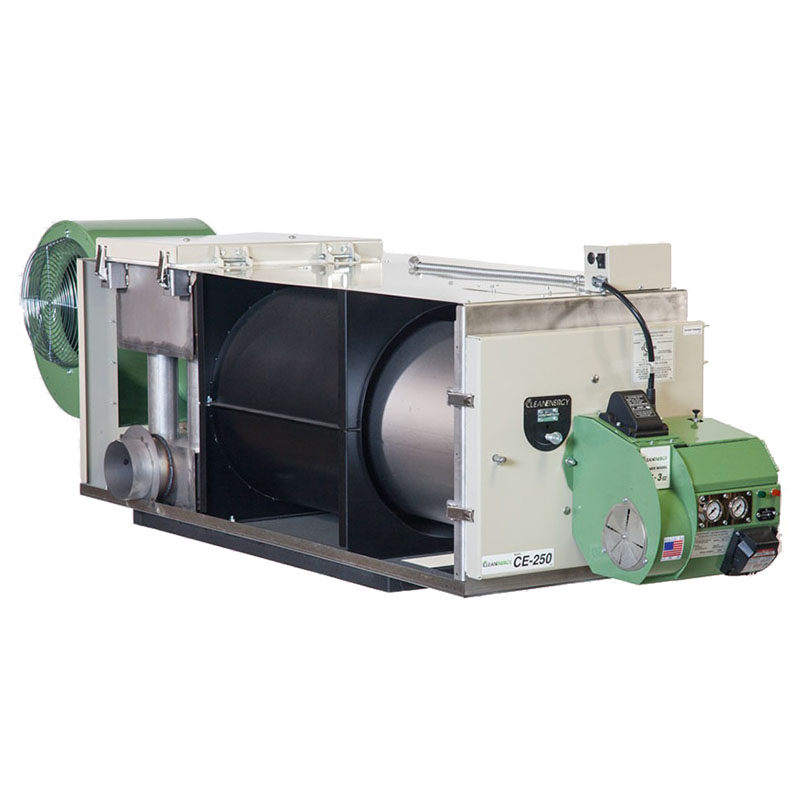

High velocity air swept stainless steel heat exchanger Produces More Heat
Thermostatically-controlled pre-heater easily pass UL “cold oil start” tests
Burns a variety of fuels including most synthetic oil, and just about any mixture of oil products
Dependable, Easy to Install Metering Pump. Pre-assembled and vacuum-tested – automatically adjusts for different fuels
Quick, Easy Access Oil Line Connection Block – allows easy access without disconnecting oil line.
Modern Burner manufactured by CleanEnergy preheats oil, regulates and optimizes combustion
Tank, Wall or ceiling mounting options.

Specifications

245,000 BTU/hour Input
2,700/90°F, air flow output CFM/heat rise
1.7 GPH fuel consumption
Acceptable fuels: used crankcase oil, transmission fluids, hydraulic oil, #2 heating oil (diesel fuel) and most synthetic oils
115vac, 60hz, single phase, 30A breaker
Vertical Stainless Steel flue tubes
6″ chimney outlets on left or right side
Tank, wall or ceiling mountable
Digital wall thermostat
14,000 volt Burner with Interrupted Duty Ignition

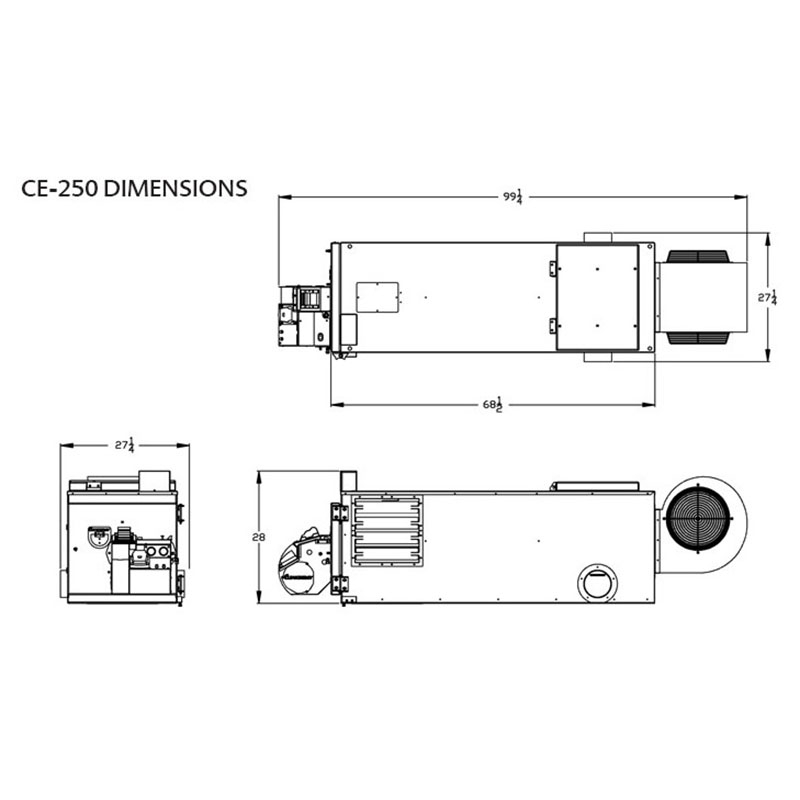

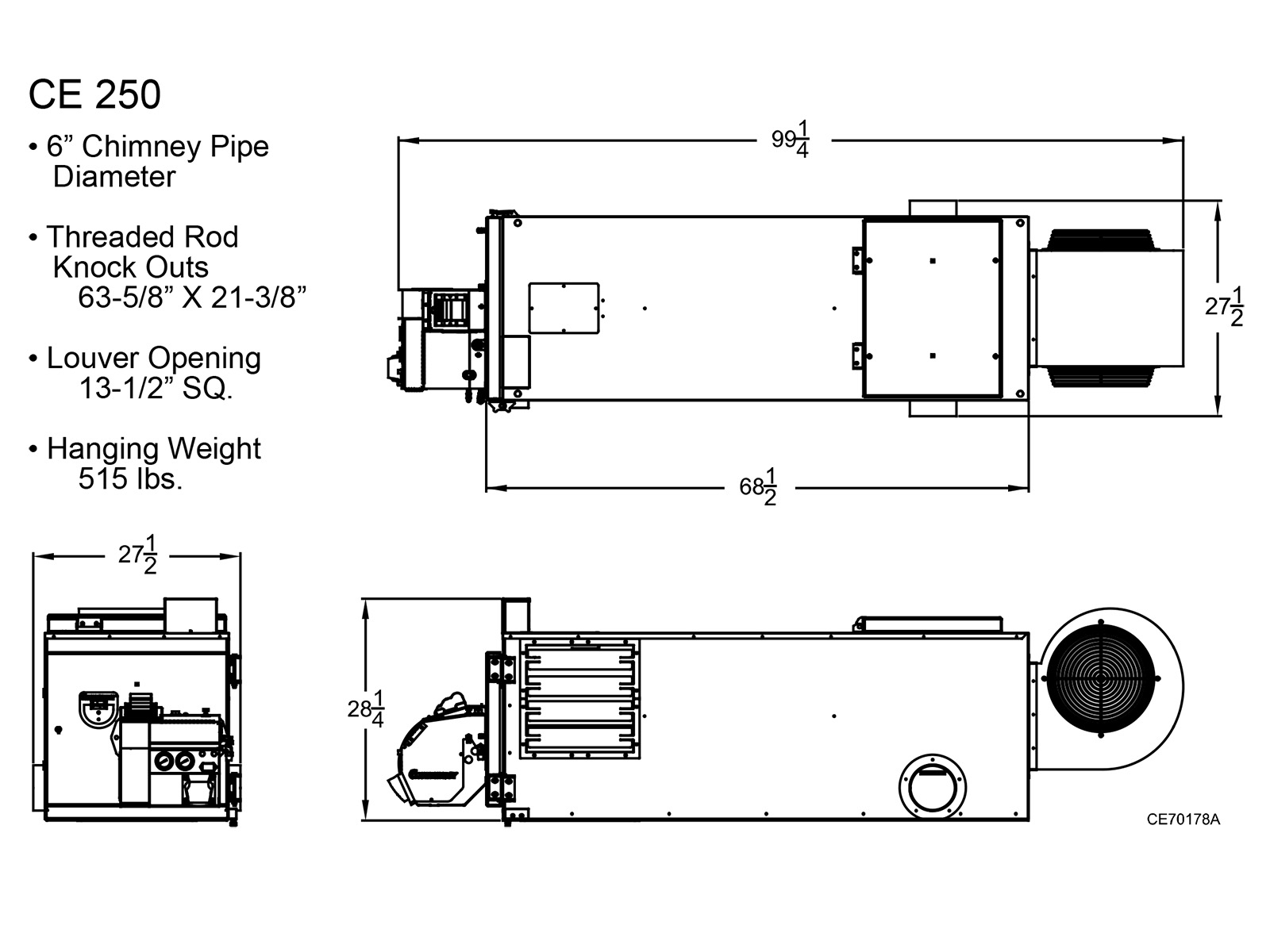

100″l x 28″h x 26″w (w/burner and blower)
UL Listed – cUL Listed
12 Year Warranty
Made in the USA
